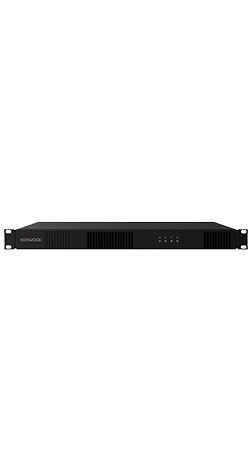

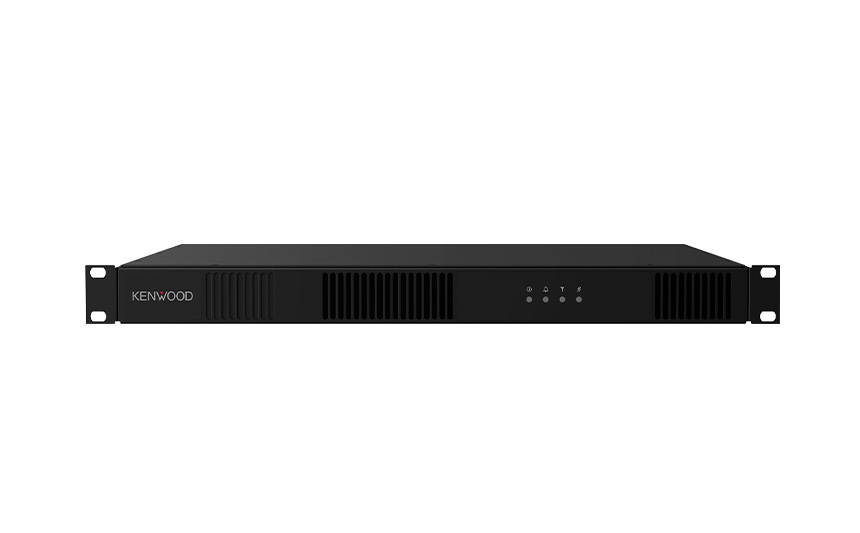

TKR-2500

TRUNKING 2.5 was born as an unique technology for KENWOOD to provide a DMR-based trunking solution for shared-use frequencies. Providing a solid answer that offers capacity, flexibility, and capability, the TKR-2500 repeater brings forward KENWOOD’s rich history of reliability and performance to our extensive range of customers.

Providing the backbone of TRUNKING 2.5, the TKR-2500V/U repeaters exclusively work with the KENWOOD NX-3000/5000 subscribers. The companion KTI-2500 controller allows for full scale system management and integration, as well as redundancy.

Features

• 50 - 2 W @ 100% Duty (136-174 MHz)
• 40 - 2 W @ 100% Duty (470-520 MHz)
• 40 - 2 W @ 100% Duty (400-470 MHz)
• 1U Height / 19-inch1.71-inch
• Built-in IP Network Adapter
• Multicast
• CW ID
• SNMP Monitoring
• FCC Type 1 / Type 2 monitoring
• RADIUS / LDAP

Digital – Trunking 2.5

• Hibernation / Quick CCH RotationMixed
• Composite CCH
• Preference Level (CCH Priority)
• USBD (up to 1,000 per min)
• Authentication
• Text Messaging (Up to 46byte)
• IP OTAP
• Priority Interrupt
• Priority Call Notification
• Registration Timer
• Encryption (DES)
Optional Features
• KTI-2500 System Controller
• AIS Calling
• SIP Calling
• G.711 TranscoderVoting
• High Availability

There are no included accessories available for this product.

Product Brochure: TKR-2500.pdf

There is no product manual available for download at this time.
