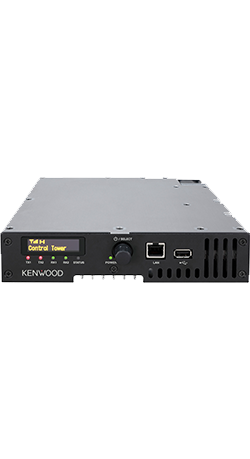

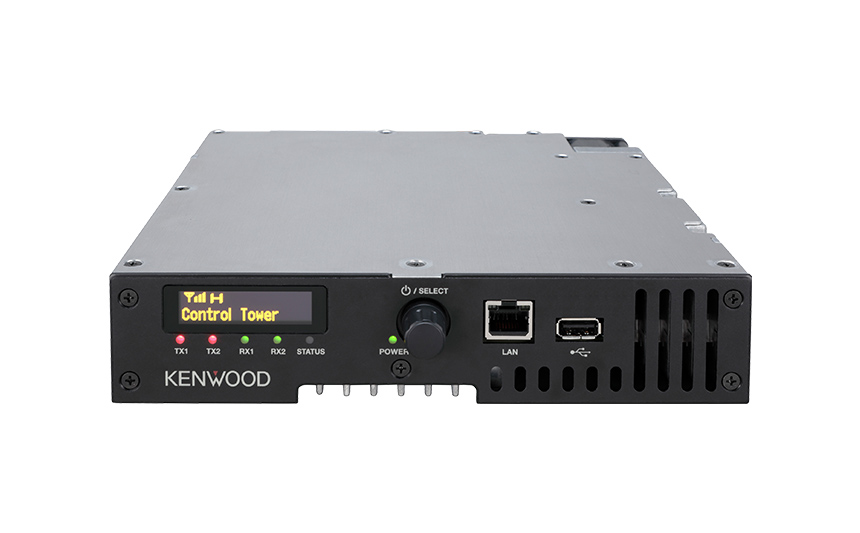

NXR-1700E

50 - 1 W RF Output Power (Up to 50 W @ 50%, 25 W @ 100% Duty Cycle)
136 - 174 MHz
Light, Compact and Space-Efficient
1.71-inch OLED with Icons and Numeric Displays
Thermal-Controlled Cooling Fan
External Power Supply
Up to 32 Channels
Dual Digital Protocol: DMR Tier II / NXDN Conventional*2, *3 (programmable one at a time)
USB-A Connector Ready for Audio Accessories
External In/Out Pin from DB25
Non-repeat Simplex / Semi-Duplex Mode for Analog and NXDN Digitall*2, *3
Hot Standby System Redundancy
Built-in IP Network Adapter
Unicast and Multicast Call Routing
SNMP Protocol for Direct Reporting to a Generic System*3
Supports G.711 Audio Codec (for Test onsole and Third-party Applications)
IP Remote Management (Monitor / Control / Programming / Test Console)
Ready for IPIF to External Applications (for IP Console, OTAP) / Voice Logging
Built-in SIP IF without External IP Console or Gateway (Digital Only)*1, *2, *3
IP Remote Control Interface (IPRCI)*3
Enhanced Security (HTTPS)
CW ID
Hang Timer
Multi-Site Conventional IP Network up to 16 Sites (for both Digital and Analog)*2
IP Networking Compatible with NXR-5000 (NXDN)*2,*3, legacy KTI-3 (NXDN)*2,*3 and KTI-5 (DMR)*2
